Product focus: INCONEL alloy 601

Working in extreme environments requires an exceptional combination of strength, corrosion resistance and heat resistance. That’s why INCONEL alloy 601 is a popular choice for a range of high-stress applications in the most demanding industrial sectors, such as the aerospace industry, power generation, and chemical and thermal processing.

This nickel superalloy stands out amongst its peers for its ability to resist very high temperatures without losing its strength. It can also bear significant cyclic stress over long periods before succumbing to deformation. This makes it a far safer and more cost-effective choice compared to the cheaper options on the market. In this post, we’ll take a close look at alloy 601 and explore its many benefits and strengths.

Composition

The specific composition of INCONEL alloy 601 is what makes it such an impressively high performer even in extreme environments. The biggest component is nickel, with a proportion of 58 to 63%. Combined with 21 to 25% chromium, this makes alloy 601 highly resistant to heat as well as corrosion. The alloy’s oxidation resistance is further enhanced by the addition of 1 to 1.7% aluminium.

In addition to their individual properties, these three key components – nickel, chromium and aluminium – also interact to further strengthen alloy 601. When exposed to high temperatures (up to 1250°C), they react together to form an adherent oxide film across the alloy’s surface. This film is extremely effective in protecting against oxidation, which poses a major risk to metal components in hot environments. However, that is not its only benefit. When the alloy is subjected to cyclical heating and cooling, the oxide layer also protects well against spalling: a form of metal fatigue in which the material degrades into small flakes known as spalls. This means that alloy 601 is unusually capable of enduring this particularly demanding and potentially damaging process.

The interaction of its three main elements makes alloy 601 a truly unique material, even among nickel superalloys. Not only can it tolerate extremely high temperatures, but these actually intensify its useful qualities rather than compromising them. While alloy 601 is not recommended for use in a strongly reducing sulphur-bearing environment, it can safely be deployed at the kind of temperatures – and under the kind of stress – that would severely shorten the useful life of many other materials.

Key properties

In addition to its outstanding resistance to oxidation and spalling, alloy 601 is also quite simply a great all-round choice for manufacturing, processing and other demanding applications. Easy to form, machine and weld using standard techniques, it also displays a high degree of mechanical strength that remains constant in high-temperature environments. Its structure and stability allow it to maintain ductility and resist embrittlement, even in response to extreme heat.

Creep-rupture strength is another outstanding quality of INCONEL alloy 601. When a metal component is subjected to low-cycle fatigue in a hot environment for a long period of time, it will gradually and inevitably begin to deform. This shortens its useful life and introduces the risk of catastrophic and sudden failure. Such a failure may have serious safety implications as well as requiring the component to be replaced completely. Nickel alloys are generally valued for their ability to resist creep for longer than other materials, but alloy 601 is a strong performer even by these high standards. This reduces maintenance costs and potential downtime as well as enhancing your system’s safety.

INCONEL alloy 601 resists aqueous corrosion and carburisation well. It is also very resistant when deployed in sulphur-bearing oxidising atmospheres and in carbon-nitriding conditions. Overall, this is a strong, versatile and easy-to-handle alloy that is very well suited for use in a broad spectrum of extreme, high-stress and challenging environments.

Applications

In view of all this, it’ll come as no surprise that alloy 601 is frequently used in the aerospace industry. Its versatility makes it suitable for a range of applications across the sector. Some specific uses include the manufacture of containment rings in gas turbines, jet-engine igniters, combustion-can liners and diffuser assemblies. It is also often used in fossil fuel combustion engines, specifically within thermal reactors.

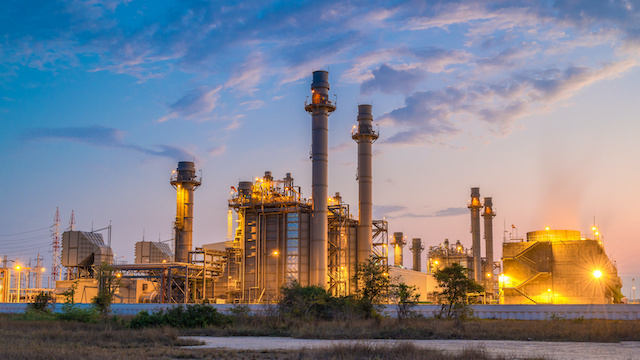

Power generation is another significant field of application for INCONEL alloy 601. Grid barriers, superheater tube supporters and ash-handling systems all benefit from its combination of strength and resistance. Its corrosion and oxidation properties also make it a stalwart component of processing situations of many different kinds: whether chemical, petrochemical, waste or thermal processing.

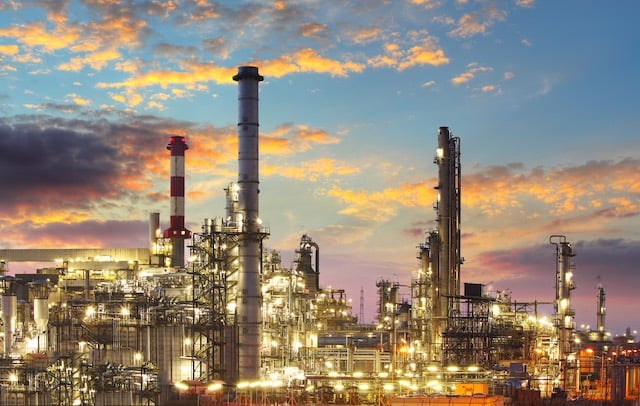

To take thermal processing as an example, you will find alloy 601 in components such as burner nozzles and chain curtains, trays and baskets, muffles, flame shields and heat-treating operations. In chemical processing, it is often used in the manufacture of combustor components, insulating cans for ammonia reformers, and condenser tubes for sour-water strippers.

But this is not the end of INCONEL alloy 601’s many applications – far from it. In metal and glass manufacture, you’ll find it in thermowell sheathing material and oxygen injection tubes. It’s also deployed in ceramic tile production as tubing for roller hearth ovens.

Strength and versatility

Highly resistant to oxidation and corrosion and able to ward off common hazards such as creep, embrittlement and spalling, INCONEL alloy 601 is an effective choice for a whole spectrum of critical high-stress applications. Because it’s so easy to work and maintains its ductility across a range of temperatures, it is one of those rare materials that is as versatile as it is strong. It’s no wonder that this nickel superalloy is an established and reliable favourite of engineers across a whole range of fields and sectors.

If you think that INCONEL alloy 601 might be the right material for your project or application, visit its product page for more details – or get in touch with a member of our Sales team.
