Nickel 200/201

  • N02200
  • 2.4066 / 2.4060

NICKEL ALLOY 200

Nickel Alloy 200 is commercially pure wrought nickel grade (>99.0wt percent) and has a number of useful characteristics including good ductility and mechanical properties, permitting fabrications with sound welds to be constructed, particularly in the caustic concentration sector.

Key properties

(in annealed condition)
Tensile strength: 55.00–75.00
Yield strength: 12.00–30.00
Elongation: 60.00–40.00%
Hardness: 70.00

Ni

99.00% min

Fe

0.40% max

Si

0.35% max

Mn

0.35% max

Cu

0.25% max

C

0.15% max

S

0.01% max

NICKEL ALLOY 201

Nickel Alloy 201 is the low carbon version of Nickel 200 suitable for forming by deep drawing and spinning into combustion boats and the continuous stamping of strip into electronic components. The material is selected for caustic salt evaporators above 315 deg C (600 deg F) as the extended exposure of Nickel 200 above this temperature can lead to the formation of graphite.

Key properties

(in annealed condition)
Tensile strength: 50.00–70.00
Yield strength: 10.00–28.00
Elongation: 60.00–40.00%
Hardness: 62.00

Ni

99.00% min

Fe

0.40% max

Mn

0.35% max

Si

0.35% max

Cu

0.25% max

C

0.02% max

S

0.01% max

INVENTORY

Product form Size range from Size range to
Alloy 200 & 201 pipe 0.5 in 8 in
Alloy 200 & 201 tube 12 mm 260 mm
Alloy 200 & 201 pipe fittings 0.5 in 8 in
Alloy 200 & 201 flanges 0.5 in 8 in
DOWNLOAD DATASHEET

APPLICATIONS

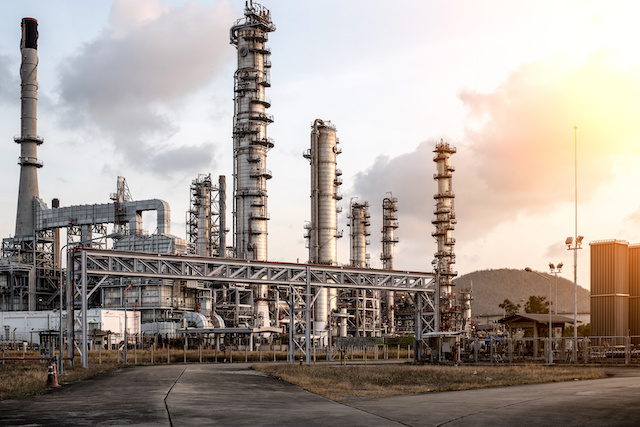

www.corrotherm.co.ukhubfsINCONEL alloy 22-640

ALLOY 200 CAN BE USED IN A VARIETY OF APPLICATIONS

Here are just a few examples:

  • Chemical Processing and Storage
  • Synthethic Fiber Production
  • Processes using caustic alkalines
  • Food Processing

ABOUT NICKEL ALLOY 200

The material has been used for the transport of chemicals and aerospace components.

In addition due to the materials’ physical properties, including the magnetic and magnetorestrictive properties, thermal and electrical conductivities and with the capability to be produced as fine wire, the applications for the material have extended into electrical and electronic applications such as high power radio valves and infrared emitters in vacuo.

Nickel 200/201 is frequently dual certified as a result of processing which provides the strength of Nickel 200 with the stability of the compositional controls of Nickel 201.

To learn more about our stock of Alloy 200 pipe and tube contact us, or fill in our online quote request form and one of our team will get back to you.

Properties of Nickel Alloy 201

DENSITY    8.89 g/cm³ | 0.321 lb/in³
MELTING POINT 1435-1446°C | 2615-2635°F

ABOUT NICKEL ALLOY 201

Nickel 201 will not form graphite after extended exposure to temperature providing carbonaceous materials are not in contact with it. The material is however subject to intergranular embrittlement by sulphur compounds above 315 deg C ( 600 deg F) such that machining fluids and external sources of sulphur need to be eliminated to prevent damage during fabrication and subsequent service. Nickel 201 is approved for pressure vessel service ( ASME VIII Div 1) to 1250 deg F.

Nickel Alloy 201 has good resistance to a number of acids and alkalies, however its major use lies in the electrolytic extraction of caustic soda from salt solutions and the subsequent concentration processes. With excellent resistance to distilled and natural waters creating a tenacious oxide film the material is used in the food processing industry

Nickel 201 is available in all product forms including bar, plate, sheet, strip, wire, tube and pipe fittings , flanges and fasteners with welding consumables for most welding processes with the exception of oxyacetylene. The alloy can also be brazed and soldered.

Nickel 200/201 is frequently dual certified as a result of processing which provides the strength of Nickel 200 with the stability of the compositional controls of Nickel 201.

To learn more about our stock of Alloy 201 pipe and tube contact us, or fill in our online quote request form and one of our team will get back to you.

Properties of Nickel Alloy 201

DENSITY    8.89 g/cm³ | 0.321lb/in³
MELTING POINT 1435-1446°C | 2615-2635°F

Applications

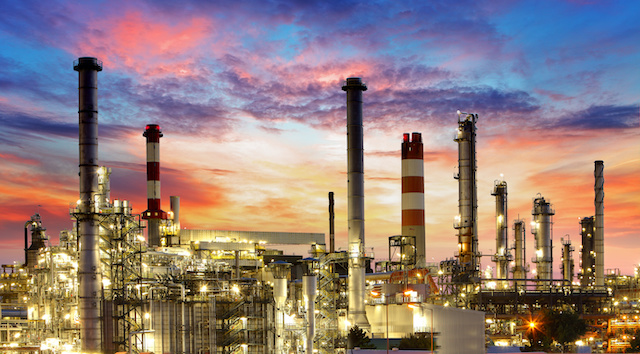

www.corrotherm.co.ukhubfsINCONEL alloy 690-640-2021-Jan-07-2022-01-15-23-02-PM

Alloy 201 can be used in a variety of applications

Here are just a few examples:

  • Chemical Processing and Storage
  • Synthethic Fiber Production
  • Processes using caustic alkalines
  • Food Processing

NICKEL ALLOY 200 & 201 MECHANICAL PHYSICAL PROPERTIES

Property -184.4°C -73.3°C 21.1°C 93.3°C 315.6°C 537.8°C 760°C 1093.3°C
Charpy Impact V-notch /J (hot-rolled) - - 271.2 - - - - -
Charpy Impact V-notch /J (cold-drawn/annealed) - - 309.1 - - - - -
Coefficient of Thermal Expansion /µm/m°C 8.5 11.2 - 13.3 14.4 15.3 16 17.1

Nickel Alloy 200 Specifications

UNS Number N02200
WNR Number 2.4066 / 2.4060
Standards ASTM B161, B163, B725, B730, B751, B775, B829

Nickel Alloy 201 Specifications

UNS Number N02201
WNR Number 2.4061 / 2.4068
Standards ASTM B161, B163, B725, B730, B751, B775, B829

Welding Consumables

WELDING ELECTRODES Nickel Electrode 141
FILLERS Nickel Filler Metal 61
